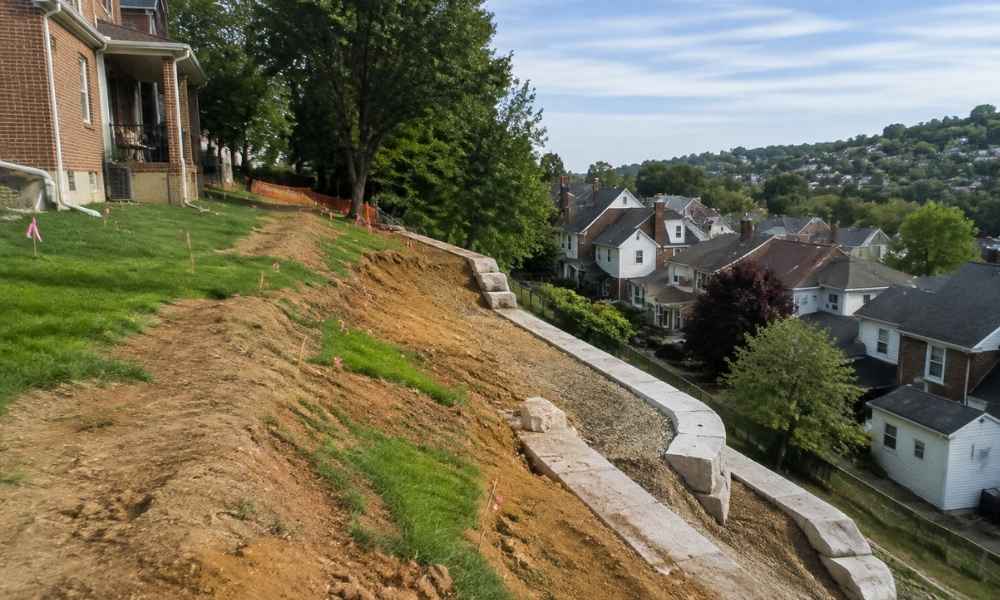

Pittsburgh lots don’t sit flat. Many yards drop several feet from the house to the property line, sometimes more. A retaining wall has to fit into that drop exactly where the ground calls for it, not where a rough guess places it. Knowing a lot is hilly isn’t enough. What matters is the actual elevation at the spot where the wall will go, and how that elevation changes along its length. Before a wall design gets finalized, the design team needs a clear picture of the existing ground. That’s what topographic survey data provides: real, measured points that describe the ground as it exists today, before anyone touches it. On a tight urban lot in a place like Pittsburgh, where the space between the house and the property line can be short, that kind of detail carries extra weight.
The Wall Needs More Than a Single Starting Elevation
A retaining wall design can’t run on one elevation reading. The ground along a proposed wall line often shifts from one end to the other, sometimes by a foot or more over a short run. On a sloping lot, the soil at the top of a proposed wall may sit several feet higher than the soil at the bottom, even if the yard looks like one steady slope from a distance.
Survey points taken along and around the wall location give the designer actual numbers instead of a visual guess. Each point ties back to real elevation, so the design team can see exactly how the ground rises or falls across the wall’s length. That relationship between the wall and the surrounding grade shapes almost everything that comes next: wall height, footing depth, and how the wall ties into existing grading nearby.
Grade Breaks Can Change the Wall Layout
Not all slopes change gradually. Many yards have a grade break, a spot where the ground surface shifts direction, sometimes sharply, within a few feet. A wall line that looks straight and simple on paper might actually cross two or three different ground conditions once you look at the surveyed surface.
Surveyors record these transitions as breaklines, points that mark where the slope angle changes. Without that information, a wall alignment might get drawn based on how the yard appears, not how it actually behaves underfoot. A spot that seems fine from the top of the yard could turn out to sit right on a grade break, which changes how the wall should be built there. Seeing the existing surface first lets the design team flag those spots early, before the wall footprint is locked in.
Wall Height Can Vary Along the Same Alignment
This is one of the most overlooked parts of retaining wall planning. A wall doesn’t meet the ground at the same height along its whole run. On a sloped site, one end of the wall might only need to hold back a foot or two of soil, while the other end faces four or five feet, or more.
Topographic survey data lays out the existing ground surface at each point along the proposed wall. Designers use that surface to work out proposed grades and figure out how wall height changes from one point to the next. This is where accurate elevation data earns its keep. Guessing at wall height in one spot and applying it across the whole wall can lead to a mismatch between the design and the real ground.
One thing worth being clear about: a survey doesn’t decide whether a wall is strong enough. It shows what the ground looks like now. A qualified designer or structural engineer still has to work out footing size, wall material, and reinforcement based on soil conditions, wall height, and load. The survey feeds that process. It doesn’t replace it.
The Space Behind the Wall Matters as Much as the Wall Face
A retaining wall doesn’t stand alone. The ground behind it, and around it, matters just as much as the wall face itself. The existing grade behind the proposed wall, nearby slope transitions, and any existing structures nearby, a patio, a fence line, a neighboring foundation, all shape how much room there actually is to work with.
Topographic data captures that surrounding surface, not just the wall line itself. That lets designers see how much space they have for grading behind the wall, and whether nearby features limit how the wall can be placed. A wall should get planned as part of the whole site surface, not treated like a standalone object dropped onto a slope. On tighter lots, where side yards and backyards are often narrow, that surrounding context can end up shaping the wall design as much as the slope itself.
Better Survey Data Gives the Design Team a Defensible Starting Surface
Once the field work is done, the survey becomes something the whole project team can use. It gives everyone a documented starting condition, real elevations and real ground features, not assumptions. Engineers and designers can lay proposed grades directly against the existing surface and see where they line up or don’t.
Good field data cuts down on guesswork. Instead of assuming how a slope behaves, the design team can check it against actual points. And when the survey comes as a proper electronic file, it can drop straight into digital design software, which keeps the project moving without redoing fieldwork later.
Still, a topographic survey is one piece of a larger process. It’s not a stand-in for structural engineering, and it’s not a geotechnical report. It won’t tell you what’s happening below the surface or how the soil will perform under load. What it does is give the design team a solid, accurate picture of what’s there now, on a hillside lot in an older neighborhood where every foot of grade change counts. Getting that starting picture right, before the wall design goes any further, is what makes the rest of the process worth trusting.
